SILENCE
BOOTH
Alumium Alloy
Eco-Friendly
Play Video

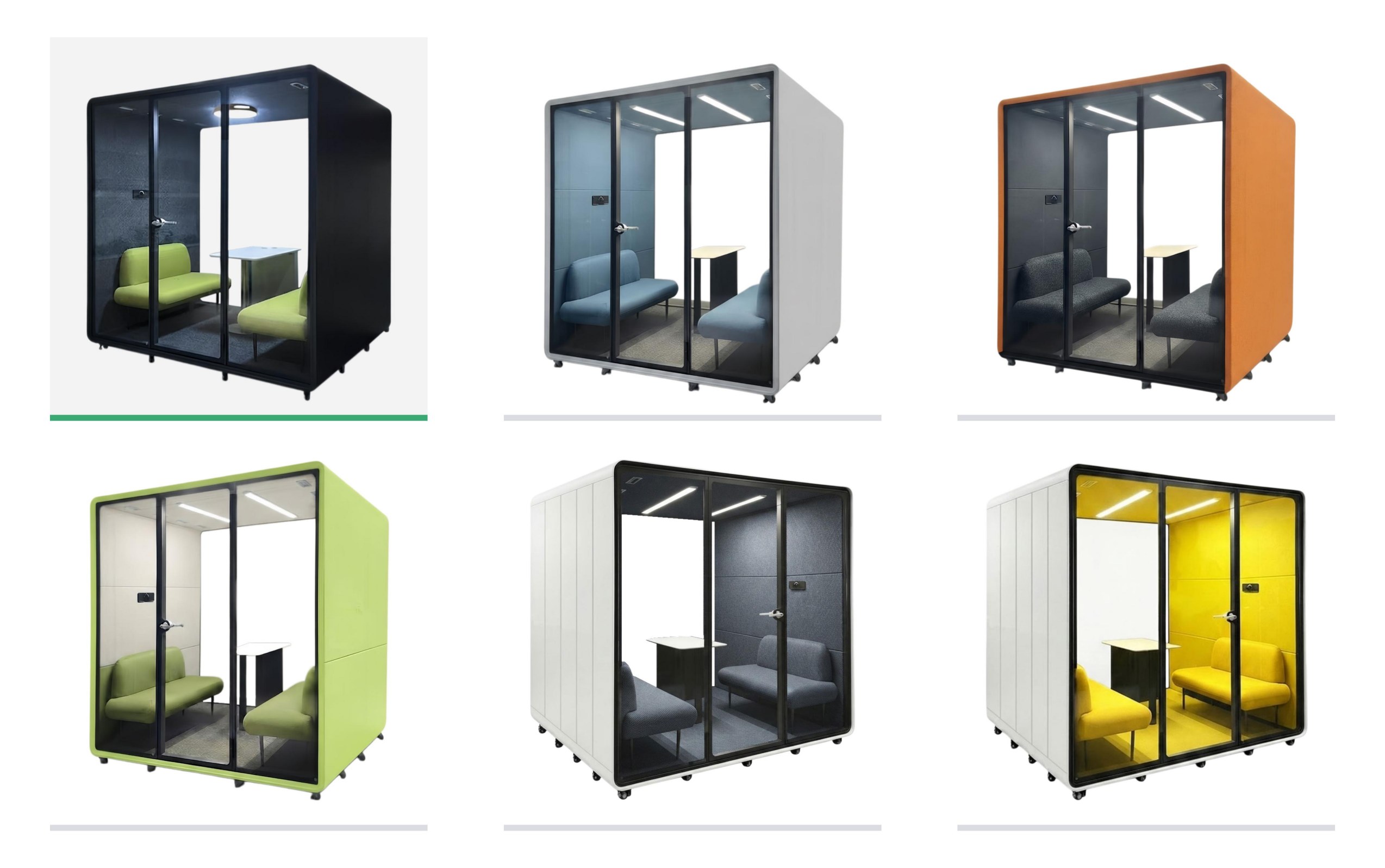

MODEL
S M SL L XL

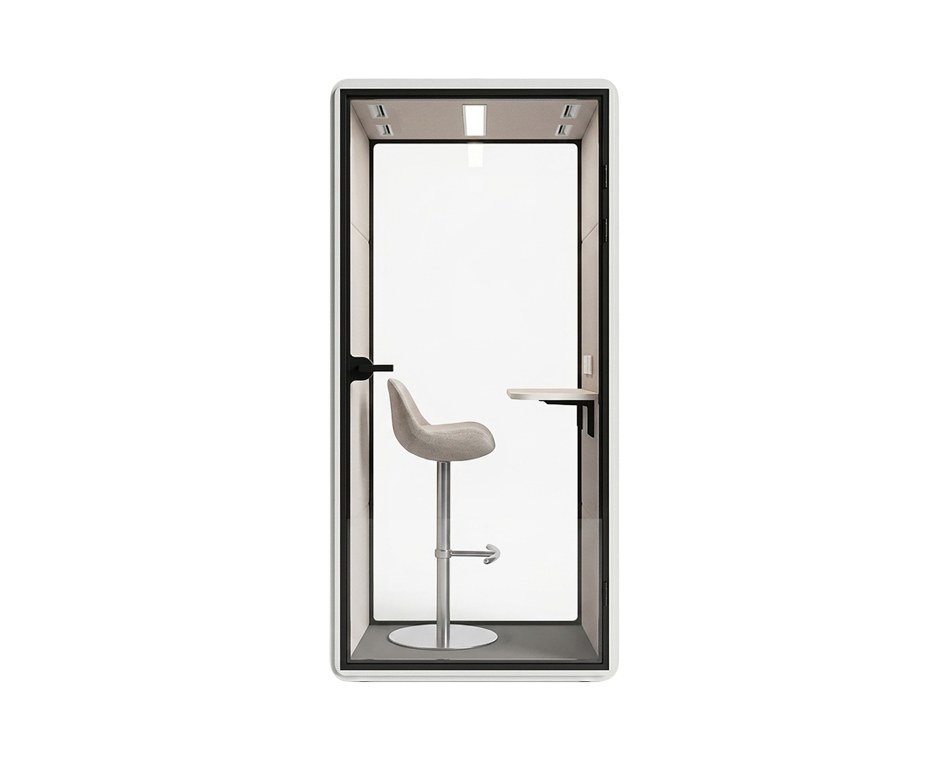

S model
1 Person
External Size
1000mm(39.37'')x980mm(38.59'')x2274mm(89.53'')
Int. Size
861mm(33.90'')x907mm(35.71'')x2112mm(83.15'')
Door Passage
918mm(36.15") x 2118mm(83.39")
Floor Space
1m²(10.75ft²)
Net Weight
276kgs(608.49Ibs)
Packaging Size
2320mm(91.34") x 580mm (22.84") x 1265mm (49.81")
Power Input
85~264VAC, 47~63hz

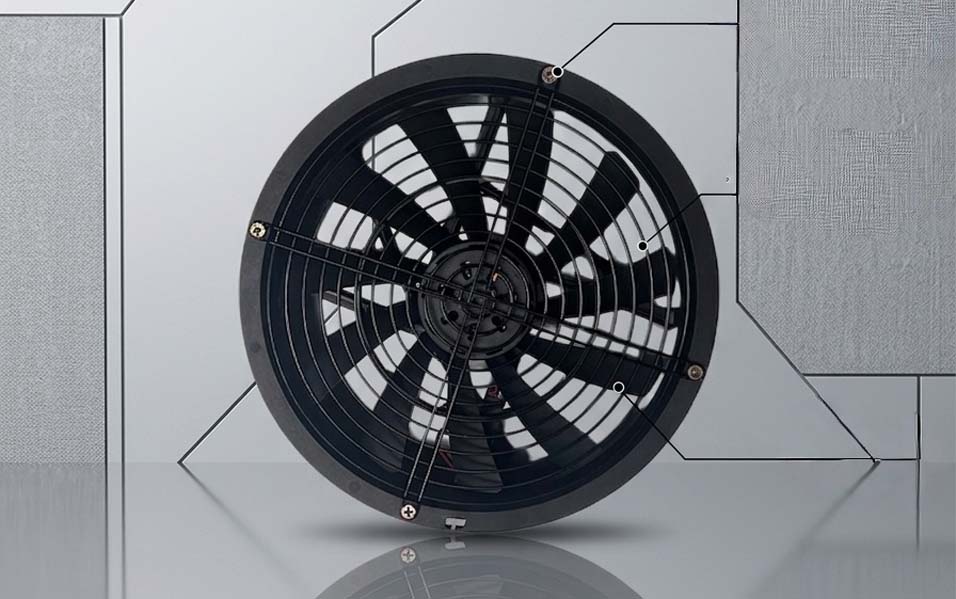

Ventilation
0~70m³(91yd³)/hr adjustable,
1.6mins/change maximum, auto-refresh;
Light
3000k-6000k, adjustable,flicker-free,
Lighting coverage:10-30m²,Aluminum+Nano-PC
Maximum Power
40W
Power Supply
5 Hole universal outlet x 2
USBTypeAx 1, USBTypeC x1

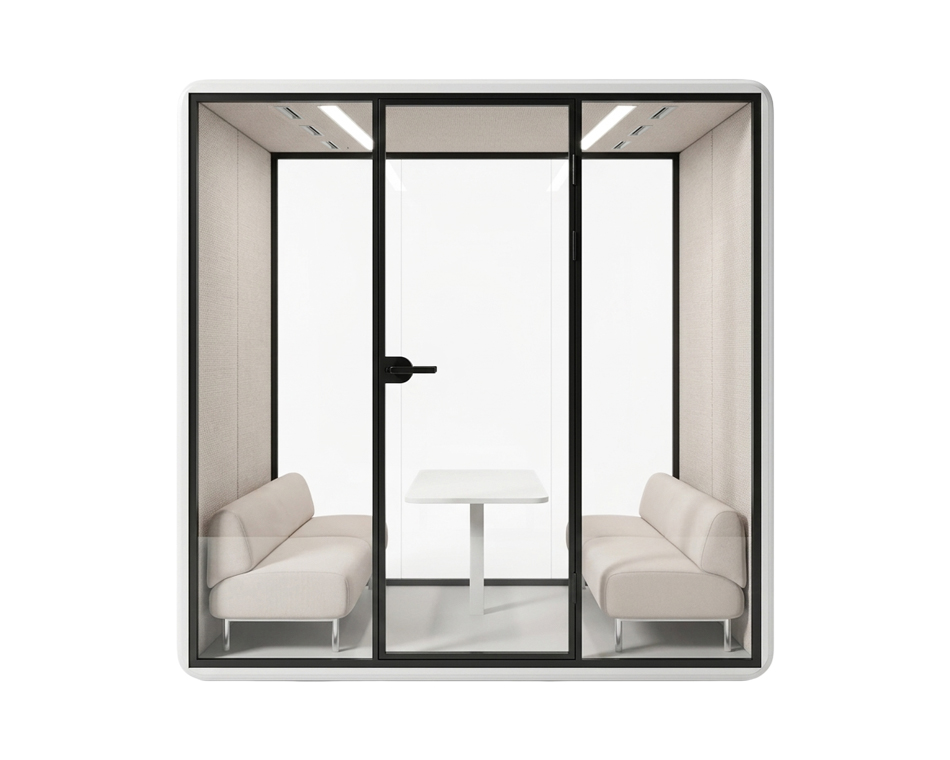

M model
2 Person
External Size
1480mm(58.27'')x1380mm(54.41'')x2274mm(89.53'')
Int. Size
1341mm(52.80'')x1308mm(51.50'')x2112mm(83.15'')
Door Passage
741mm(29.2") x 2118mm(83.4")
Floor Space
2m²(21.53ft²)
Net Weight
409kgs(901.67lbs)
Packaging Size
2320mm(91.3")x 900mm(35.4")x 1265mm(49.8")
Power Input
85~264VAC, 47~63hz
Ventilation
0~110m³(143yd³)/hr adjustable
2.3mins/change, auto-refresh
Light
3000k-6000k, adjustable,flicker-free,
Lighting coverage:10-30m²,Aluminum+Nano-PC
Maximum Power
52W
Power Supply
5 Hole universal outlet x 2,
USB TypeA x 1, USB TypeC x 1
SL model
1 Person
External Size
2300mm(90.6")x966mm(38")x2338mm(91.6")
Int. Size
2162mm(85.1") x 926mm(36.5") x 2146mm(84.5")
Door Passage
741mm(29.2") x 2118mm(83.4")
Floor Space
2.2m²(23.7ft²)
Net Weight
504kgs(1111lbs)
Packaging Size
2320mm(91.3")x 760mm(29.9")x 1265mm(49.8")
Power Input
85~264VAC, 47~63hz
Ventilation
0~110m³(143yd³)/hr adjustable
≈2.3mins/change, auto-refresh
Light
3000k-6000k, 0-1800lm, adjustable
Anti-glare index 20, CRI 95Ra, flicker-free
Maximum Power
60W
Power Supply
5 Hole universal outlet x 2,
USB TypeA x 1, USB TypeC x 1

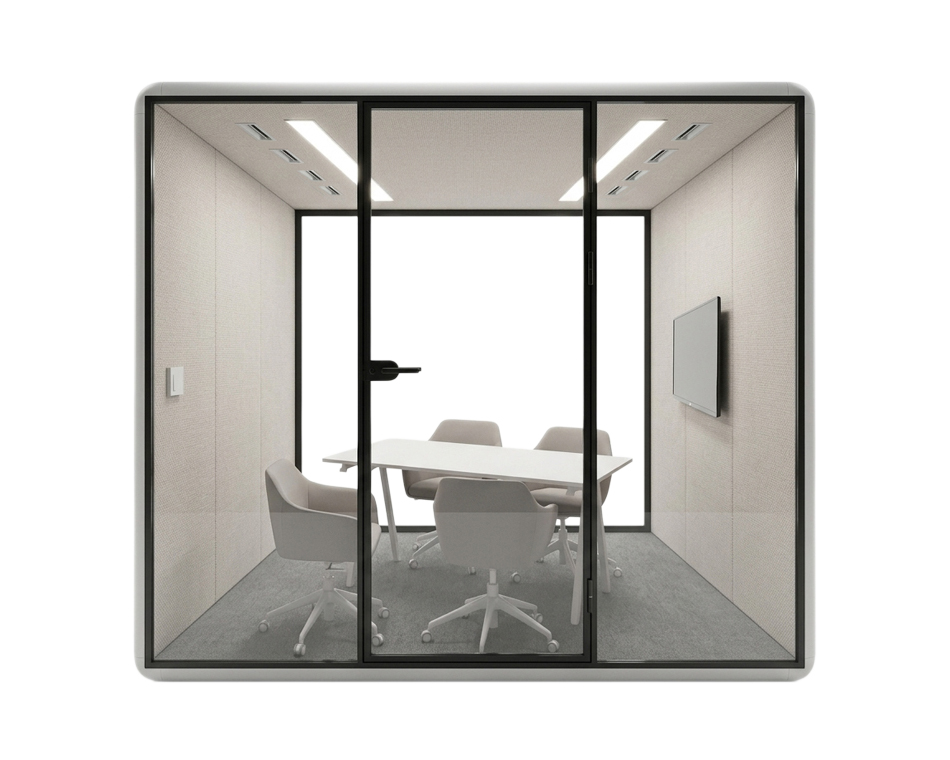

L model
4 Person
External Size
2128mm(83.78'')x1785mm(70.28'')x2274mm(89.53'')
Int. Size
1989mm(78.31'')x1711mm(67.37'')x2112mm(83.15'')
Door Passage
741mm(29.18") x 2118mm(83.39")
Floor Space
3.5m²(37.67ft²)
Net Weight
606kgs(1336lbs)
Packaging Size
2320mm(91.3")x 1100mm(43.3")x1265mm(49.8")
Power Input
85~264VAC, 47~63hz
Ventilation
0-218m³ (283yd³)/hr adjustable
≈2.2mins/change, auto-refresh
Light
3000k-6000k, adjustable,flicker-free,
Lighting coverage:10-30m²,Aluminum+Nano-PC
Maximum Power
100W
Power Supply
5 Hole universal outlet x 2
USB TypeA x 1, USB TypeC x 1

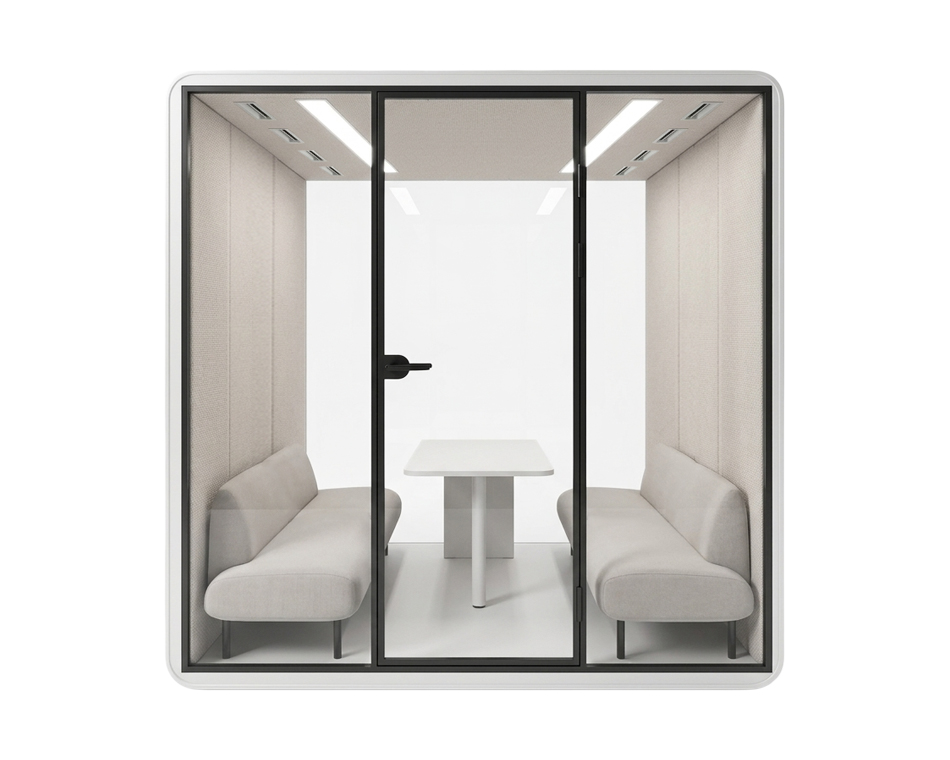

XL model
6 Person
External Size
2328mm(91.66'')x2195mm(86.42'')x2274mm(89.53'')
Int. Size
2189mm(86.19'')x2121mm(83.51'')x2112(83.15'')
Door Passage
741mm(29.18") x 2118mm(83.39")
Floor Space
3.5m²(37.67ft²)
Net Weight
784kgs(1728.42lbs)
Packaging Size
2320mm(91.3")x 760mm(29.9")x 1265mm(49.8")
Power Input
85~264VAC, 47~63hz
Ventilation
0-327m³(425yd³)/hr adjustable
4mins/change, auto-refresh
Light
3000k-6000k, adjustable,flicker-free,
Lighting coverage:10-30m²,Aluminum+Nano-PC
Maximum Power
120W
Power Supply
5 Hole universal outlet x 2
USB TypeA x 1, USB TypeC x 1
Built for a Circular Future
Designed with durable aluminum structures and replaceable components, every KFT pod is made for years of continuous use rather than frequent replacement.

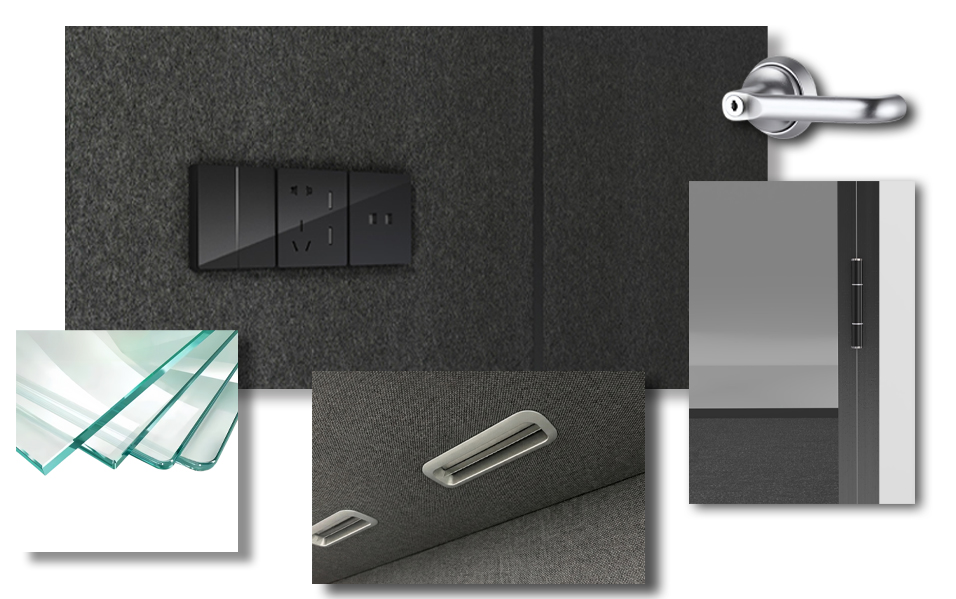

Laminated Glass
& Dual-Seal Structure
Acoustic laminated glass, paired with a dual-seal structure, enhances safety while minimizing vibration and unwanted movement. Ultra-clear low-iron glass maximizes transparency, creating a brighter, more open workspace with exceptional visual clarity.

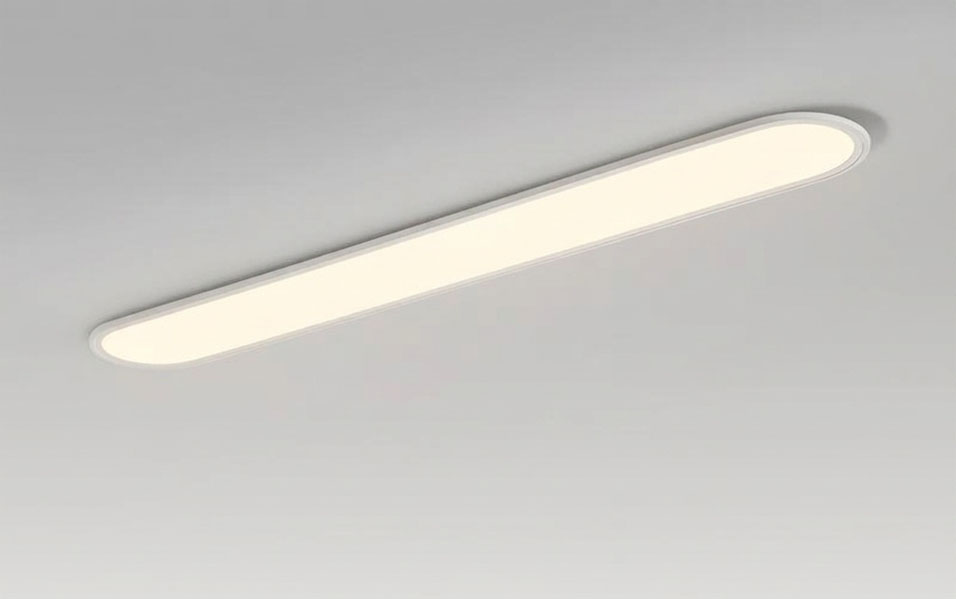

Integrated LED Lighting
Soft, evenly diffused LED lighting minimizes glare and eye strain while creating a bright, natural, and comfortable workspace for extended use.

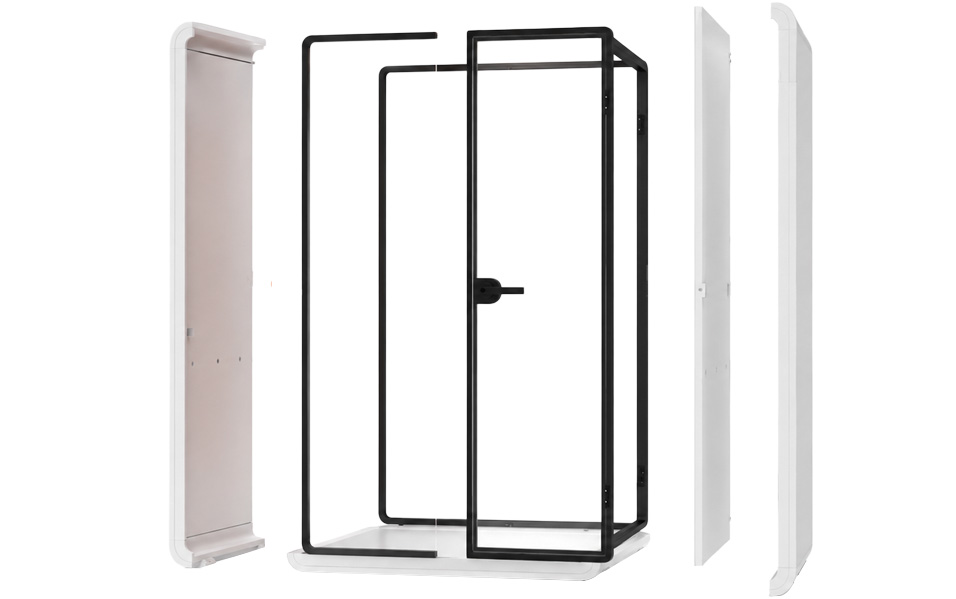

Modular Aluminum Structure
A precision-engineered modular aluminum structure provides exceptional strength while remaining lightweight and corrosion resistant. Designed for durability and flexibility, it allows the pod to be assembled, relocated, and reused with ease.

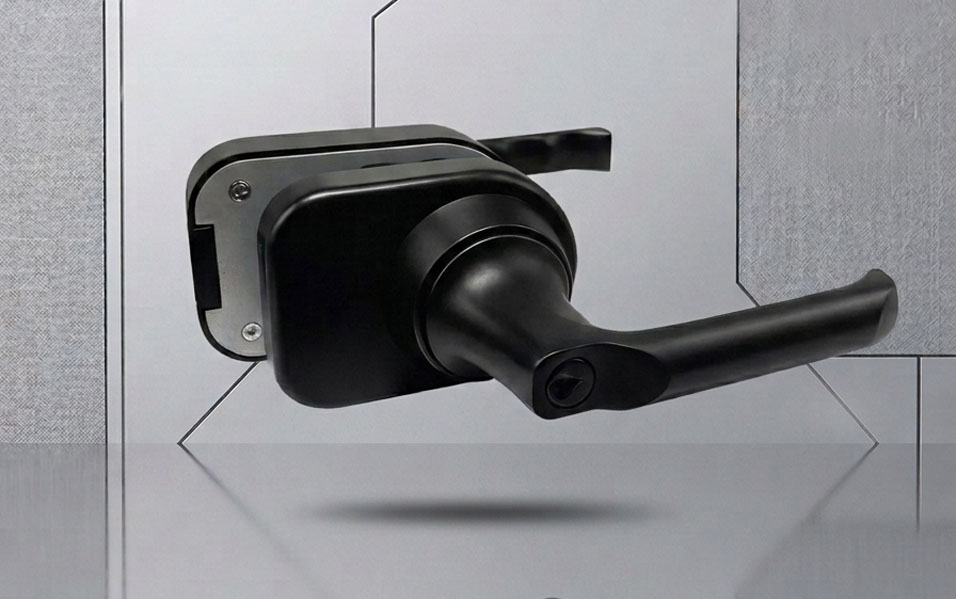

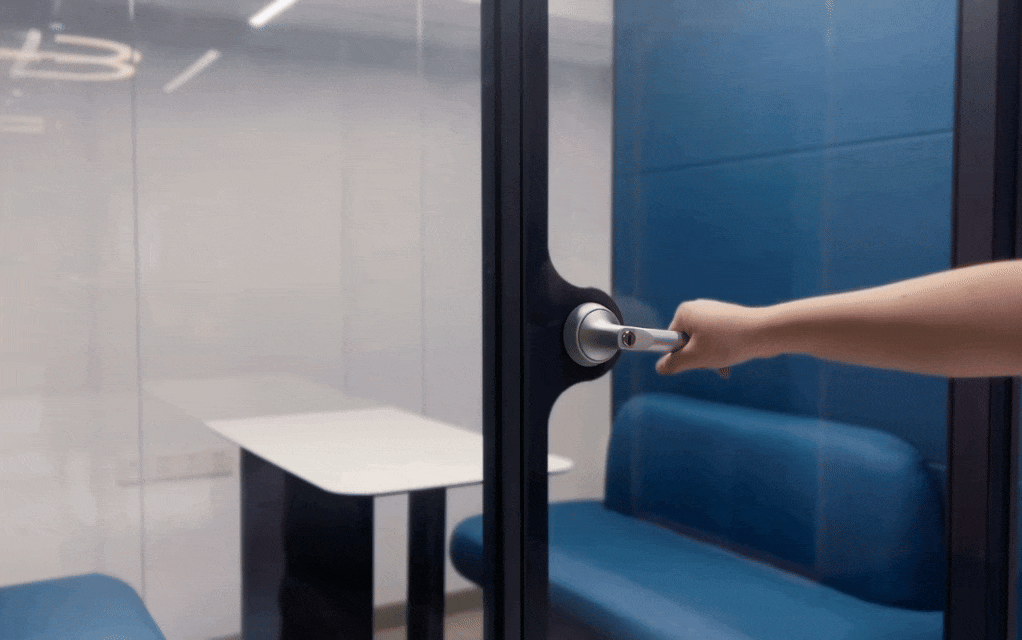

Magnetic Door System
A precision magnetic door system enables smooth, low-friction opening and closing for a quieter, more refined experience. The soft-close magnetic latch ensures secure closure while enhancing long-term durability.
Modular Aluminum Structure
A precision-engineered modular aluminum structure provides exceptional strength while remaining lightweight and corrosion resistant. Designed for durability and flexibility, it allows the pod to be assembled, relocated, and reused with ease.
Eco-Friendly Materials
Made with recyclable aluminum and low-emission materials, reducing environmental impact while creating healthier indoor spaces.
Designed for Sustainability
Smooth surfaces and durable finishes make everyday cleaning simple while helping maintain a premium appearance over time.

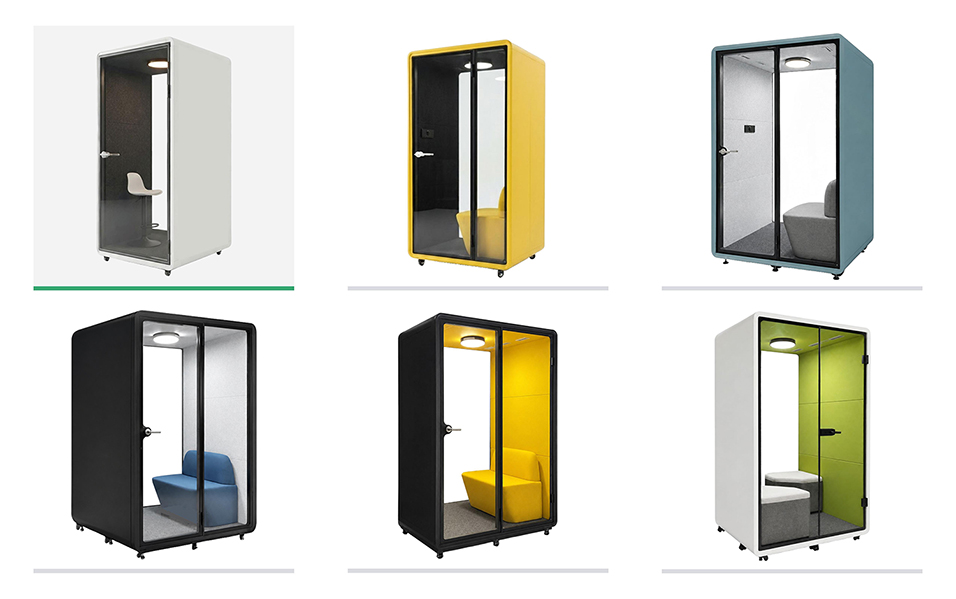

Cases
